NOTE: there is rarely any "standard" or "typical" look for a wood so take what's in this table with a grain of salt
the REST of the pictures on this page will give you a better overall feel for this wood

purpleheart / Peltogyne spp. (at least 20 species)

5" x 5" flat cut, 5" x 5" quartersawn, 1" wide end grain, and a 1/4" x 1/4" end grain closeup.

Diffuse porous with fairly large sparse pores having lozenge shaped aliform parenchyma and vague growth ring boundaries. Sometimes seemingly marginal parenchyma is present and the degree of confluence joining the pores varies a fair amount. Rays are obvious at 10X.

The best description I've seen of the brown/purple colors in purpleheart. This is from Eric, a moderator on The WoodTalk Forum:

Yeah purpleheart is weird stuff...I've seen it go both ways. We have some incredibly purple - like clownishly purple - boards come into the yard sometimes, and after a couple months some of them will begin to turn brown and others will stay purple. I've sent a totally brown piece through the planer and it's come out purple...and I've sent a very purple piece through and it's come out brown. I can't figure it out.

Like Eric, I can't figure it out either except to generically attribute it to the fact that there are quite a number of species that share the common name purpleheart, and there are varied growing conditions.


correspondent Shawn Longino reports: I wanted to give you some feedback about Purpleheart. I bought a big plank of the stuff and it was amazingly purple, even fresh cut, and it smelled like vinegar. This wood changed to that fleshy mauve that is typical of un oxidised purpleheart over a period of a couple of months. I had a helluva time restoring that color when I finished the wood. Oil based Poly brought up the red, while water-based poly pulled a bluish grey color right out of the wood into the finish, obscuring the grain considerably, I attribute this to the alcohol solvent, but I haven't done any further experimentation.

Here's what my solution turned out to be; Somewhere I read a tip that an application of diluted Muriatic acid would bring up a bright hot color. I used regular vinegar, because I didn't want a raspberry red shade, and it did seem to hasten the purple-ising of the wood. The grain didn't raise too much! After sanding, I sealed the wood with a water-white lacquer, which brought out the depth of the grain beautifully, A coat of water-based poly over that, brought the color back to the glorious violet hue that the wood is so famous for, without coloring the finish. This did a nice job or restoring a piece of Purpleheart that got left out too long and had started browning out. i didn't get as brilliant a hue, but it definitely doesn't look like Mahogany now!

my samples:
NOTE: these pics were all taken in very bright incandescent lighting ("soft white" at 2700K)
colors will vary under other lighting conditions


a turning showing 2 pics, each with 2 views taken 9 years apart and put here to show the darkening with age. The details of the turning with comments about the colors are at the bottom of this page, along with enlargements of all views.


a veneer sheet that was half covered and then left exposed to direct sunlight for about an hour a day for a week (and indirect sunlight for the rest of the day). The side on the right, which is the side that was exposed, shows clearly how this wood can be enriched by exposure to sunlight. The first level of enlargement seems to show it even better.


both faces and a middle section of a 3/4" thick stick that I ripped to produce 3 roughly 1/4" thins --- HUGE enlargements are present. As you can see, both outer faces, having been long exposed to light and air, are nicely purple but the freshly cut inside is much duller and in fact in natural light it looks quite dull. Over time, with exposure, it will take on the same purple now shown in the outer faces.


An exposure series --- both sides are raw, freshly sanded, and half covered and the rest exposed to light. The first pic shows the raw baseline and the 2nd pic shows the exposure after one month. Note that "exposure" for purpleheart very much includes air as well as light, and my cover for the left side is loose so the split between exposed and unexposed is vague. To see the complete series, click here: purpleheart exposure series


one of the most notable characteristics of this wood is the results of a heavy resin that is prevalent in most planks --- what will happen is that if you allow the cutting edge to over-heat the wood, the resin will cause the overheated area to turn a purple so deep it is almost black. Here is an example of a saw-cut that produce some small areas of that discoloration in the side grain. See "cooking for color" below for further discussion of the resin.



COOKING FOR COLOR

Some purpleheart is heavy in resin and if you bake the wood you can get the resin to suffuse more evenly throughout the wood and doing so will make the color both more uniform and more vibrant. I've tried 30 minutes at 400 degrees and an hour at 300 degrees and I find that the hour at 300 degrees works better. WARNING --- this causes a really awful stench and you need to put a cookie sheet under the wood so that the resin doesn't drip onto the burner and REALLY cause a stink. I put the cookie sheet on the lower rack and the wood itself on the upper rack so that the direct radiated heat from the burner does not hit the wood directly.

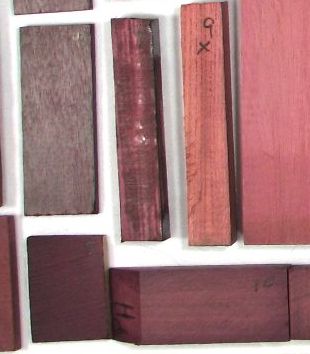

uncooked and then cooked. The most dramatic color change was on pieces 6 and 7 which were very heavy with resin. On sheet 21 you can see where the resin has seeped out onto the face of the plank. This evens out with sanding. The pieces with the "X" under the number (9, 11, and 15) were NOT cooked so as to maintain a color reference between the two pics.


uncooked and then cooked. Piece number 12 shows a particularly dramatic shift in color and also shows resin seeping out onto the face of the piece. Note that piecs 10 and 12 were a single piece that I cut in two so as to show the difference between cooked and uncooked (I knew this piece would show a striking color change with cooking). The pieces with the "X" under the number (9, 10, 11, and 15) were NOT cooked so as to maintain a color reference between the two pics.


uncooked and cooked closeup showing the particularly strong color change in pieces 7 and 10. Piece 9 (with the X under the number) was not cooked.


uncooked and cooked showing the resin lines in the uncooked piece and how they have spread out after cooking. It is this suffusion of the resin throughout the wood that makes the color more uniform and brighter.


The upper pic shows a small plank cut in two lengthwise and the lower pic shows the pair again after the upper piece was baked for 30 minutes at 400 degrees F One thing to note about this is that the baked piece took on a noticeable crook and baking larger pieces results in significant cracks in the wood.


same two pieces as above, but the bottom pic shows the cooked piece after I sliced off 1/8" and then sanded it down. As you can seen, the color change goes all the way into the wood. These pics make the cooked piece look darker than it really is. The cooking does make it pretty dark, but it is a little more purple that what shows up here. The true color shows up best at the 2nd enlargement.


cooked in a different batch, these two planks show some of the best color to come out of cooking. Some planks hardly improve in color at all and some, like these, get very nice.


"before"pic of a set to be cooked (see directly below)


"after" pic showing the effect of one hour at 300 degrees F on the planks on the left side. The pic doesn't quite catch the vibrancy of the purple in the cooked planks. I'm really pleased that these took the cooking so well because they are from a very large plank and I'm assuming that the whole plank will now produce really terrific planks for my bowls (once they are cooked).





misc planks shot at different lumber yards (the last two are from the same yard). HUGE enlargements are present.


plank and end grain sold to me as purpleheart / Peltogyne lecointei


end grain closeup of the piece directly above


END GRAIN UPDATE from directly above


plank and closeup --- I bought this one because of the strong cathedral grain


this is the other end (and a closeup) of the same plank as directly above --- this end actually IS the brighter purple shown in the pics, a fact that seems to be coincident with the weaker grain pattern.


a closeup of the plank directly above


a less striking plank and a closeup --- I chose this one for the consistent strong purple color.


two sections cut from the same plank and a closeup of the pair

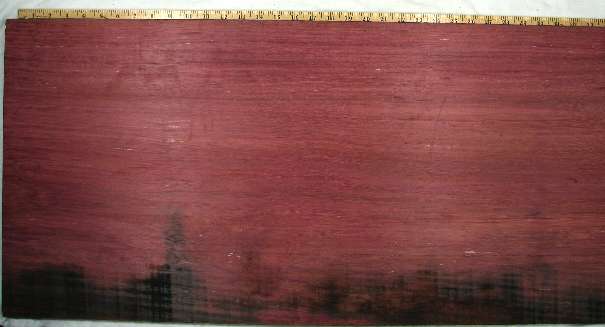

plank and closeup --- notice how the plank clearly shows the effect of having part of it (top) exposed to light and air while the rest was covered by another plank. Purpleheart has a muddy purple color at first but if you expose it to sunlight it turns a brilliant purple.


plank


plank


plank


both sides of a little cut-off. HUGE enlargements are present and make it particularly easy to see the details of the white "threads" that sometimes appear in purpleheart (it's some sort of white stuff clogging the pores but I don't know what it is)


end grain and END GRAIN UPDATE of the piece directly above


both sides of a little cut-off plank


end grain and END GRAIN UPDATE of the piece directly above


I use purpleheart as sacrificial blocks at the ends of groups of wood when I am doing my end grain updates, and this is just a few pieces for which I did a HIGH GRIT END GRAIN CLOSEUP


both sides of a sample plank of violeta (purpleheart) / Peltogyne altissima --- HUGE enlargements are present. This sample was loaned to me by David Clark whom I thank for this and other contributions to the site.


end grain and end grain closeup of the piece directly above


END GRAIN UPDATE from directly above


both sides of a sample plank of curly violeta (purpleheart) / Peltogyne altissima --- HUGE enlargements are present. This sample was loaned to me by David Clark whom I thank for this and other contributions to the site.


end grain and end grain closeup of the piece directly above


END GRAIN UPDATE from directly above


both sides of a sample plank of purpleheart / Peltogyne venosa --- HUGE enlargements are present. This sample was loaned to me by Mark Peet whom I thank for this and other contributions to the site.


end grain and HIGH GRIT END GRAIN CLOSEUP of the piece directly above


both sides of a sample plank of purpleheart / Peltogyne spp. --- HUGE enlargements are present. This sample was loaned to me by Mark Peet whom I thank for this and other contributions to the site. Mark got it from Eric Krum, who has also made other contributions to this site.


end grain and end grain closeup of the piece directly above


END GRAIN UPDATE from directly above


both sides of a sample plank of purpleheart / Peltogyne spp. --- HUGE enlargements are present. This sample was loaned to me by Mark Peet whom I thank for this and other contributions to the site. The density of this piece is 56 lbs/cuft and the nominal for purpleheart is 60.


end grain and end grain closeup of the piece directly above


END GRAIN UPDATE from directly above


a batch of crosscut pieces designed for use in an end grain cutting board, which I ended up not building (I sold the pieces)


the web pic of a small plank I bought on ebay --- the actual color of the wood is purple, not the red/orange of the web pic, as you can see in the last of the 3 pics directly below.


planks. the last one is the same piece as the web pic directly above.


a small piece and a set of flats. Both of these, especially when enlarged, appear slightly more red than the wood.


both sides of a plank that I bought because it has an odd black coloration but it turns out that it is just on the surface and I have been told that this is a natural long-term patina for purpleheart, not a fungus or metal contact or anything like that.


plank


plank


large plank


two plank and end grain of one of them --- note the way in which the end grain shows VERY resinous growth rings. The color on these pics is a little too red.


plank


both sides of a plank that I bought because of the particularly deep purple color


plank with a very light curl (can be seen in the enlargements)


purpleheart plank and closeup. I bought this one because of the knot in the middle that gives a lot of tight cathedral grain sections for my bowls. Considering how brittle purpleheart can be, this might have been a mistake. I'll see.


both sides of a sample plank of purpleheart / Peltogyne spp. --- HUGE enlargements are present. This was cut from the larger plank directly above and the first face was sanded to 220 grit


end grain and end grain closeup of the piece directly above


two face grain closeups from the sanding face and the END GRAIN UPDATE of the piece directly above


a couple of planks at a lumber yard --- I chose two that were farthest apart in color


curly purpleheart planks shot at a craft show. This vendor told me that about 1 in 10 of their purpleheart planks show some curl and about half of those are this good. HUGE enlargements are present.


both sides of a sample plank of fiddleback purpleheart / Peltogyne spp. --- HUGE enlargements are present. This sample was loaned to me by David Clark whom I thank for this and other contributions to the site. First, the designation "fiddleback" for this piece is legitimate based on common usage but it is a very weak fiddleback, as is normally the case with purpleheart. Second, I noticed with this piece, as I have with other curly purpleheart, that the figure is stronger when the board is planed but not fine sanded. The curl actually makes it physically, not just optically, to the surface and sanding reduces the effect, as can be seen in the difference between the labeled side (raw) and the 2nd side (sanded to 400 grit) above and ever more clearly in the end grain shots below that are before and after sanding.

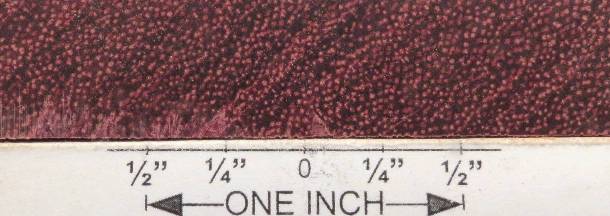

end grain pre-sanding and post-sanding. To be fair, the fiddleback figure IS still quite visible in the post-sanded piece, it just isn't nearly AS visible and it doesn't show at all from this particular angle the way it does in the pre-sanded version.


end grain closeup and END GRAIN UPDATE of the piece directly above


both sides of a sample plank of violeta / Peltogyne altissima --- HUGE enlargements are present. This sample was loaned to me by David Clark whom I thank for this and other contributions to the site.


end grain and end grain closeup of the piece directly above


END GRAIN UPDATE from directly above


first face and the end grain of a sample of purpleheart / Peltogyne spp. --- This part of a collection which is discussed here: COLLECTION G


the second face, before and after sanding it down a bit, showing how the patina from aging is only surface deep.


end grain closeup and END GRAIN UPDATE of the piece directly above


both sides of a sample plank of purpleheart / Peltogyne spp. --- HUGE enlargements are present. This sample was loaned to me by David Clark whom I thank for this and other contributions to the site. For more detail on this plank, see the sample directly below.


both sides of a sample plank of purpleheart / Peltogyne spp. --- HUGE enlargements are present. This sample was loaned to me by David Clark whom I thank for this and other contributions to the site. This sample was cut from the plank directly above.


end grain and end grain closeup of the piece directly above



veneer


veneer sheet and closeup


veneer sheet and closeup


the web pic from the vendor who sold me the lot that most of my veneer sample pics are taken from


sample veneer sheets of purpleheart / Peltogyne paniculata --- HUGE enlargements are present. This part of a collection which is discussed here: COLLECTION D. It's impossible to say whether the sheet from the old collection started out brighter or darker than it is now but I'd guess that it was a bit brighter purple and has dulled somewhat over time. The new collection piece has a very nice purple color.


a veneer sheet that has been exposed to the light for some time --- color is accurate and this sheet started off looking EXACTLY like the left side of the sheet directly above


I had the top piece of purpleheart laying out in indirect sunlight for months and when I noticed how purple it had turned, I found a consecutive sheet from the same flitch (which had been out of any direct light) and here they are for comparison. Notice also how the ribbon stripe grain is more pronounced after exposure. See also the pic directly below.


I wanted to show even more clearly the ribbon stripe grain, so I took this angled view, but it doesn't show up all that much better than the direct view you see in the top sheet of the pic directly above.


figured veneer sheet and closeup --- actual color was slightly more purple than what shows here

web pics:


planks with wet and dry sections


plank specificially listed as Peltogyne confertifolor


plank specificially listed as Peltogyne paniculata


plank specificially listed as Peltogyne porphyrocardia


planks specificially listed as Peltogyne pubescens


plank specificially listed as Peltogyne venulo and with the common name sasaka, which is a common name for purpleheart in Asia.


I'm confident that the colors on these are accurate 'cause I've seen pieces that look like these.


flat cut plank and closeup --- brilliant color is quite believable although rare


plank and closeup with reasonable color, although redder than most purpleheart


planks


plank with a color that is just ridiculous


large, freshly milled planks, all from the same vendor and all listed as roxinho (one of the MANY other common names for various purpleheart species). Judging from the rest of the pictures from which these were lifted, I's say the color is quite accurate. This is some really nice purpleheart although by the time they get to market, they might not be so bright.


misc pieces of purpleheart / Peltogyne paniculata, all from the same vendor


figured plank and closeup


figured planks


curly planks


turning stock


bowl blanks listed as purpleheart / Peltogyne paniculata


bowl blanks


turning stock with unlikely color --- well, that's what I though, but I've been informed by a correspondent that purpleheart DOES come in an almost luminescent violet and that this pic is NOT inaccurate. Just shows how little I really know about wood.


curly turning stock and planks


sold as "florescent" purpleheart, which I have not otherwise heard of, so I think that's just a marketing term and since it's from the BogusColorVendor, it's hard to say how accurate the color is (but not hard to say that it's probably exaggerated here, BUT ... see the new comment under the turning stock directly above)


another brightly colored pic from the BogusColorVendor which MAY be correct but probably isn't


listed as curly but I don't see much curl


mottled


curly scales --- very weak curl, but it's there


scales with a more pronounced curl

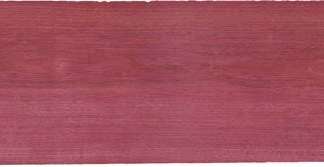

veneer


veneer with accurate color


veneer all from the same vendor --- color may be slightly too rich


veneer sheet closeups with both levels of enlargement --- color may be slightly too red; in my experience the veneer is either a grayish purple or a fairly bright purple, depending on its exposure to light, but it has no red in it.


two shots and a closeup of the same plank of figured purpleheart. I'm dubious about the red color in this but that's not surprising since it's from the BogusColorVendor


figured; actual color is likely less vivid than this, but it COULD be accurate




a vase of pure purpleheart --- unfortunately the size wasn't listed, but judging from the grain, my guess is that it's about a foot tall and the color appears to me to be very accurate.




guitar


purpleheart guitar in progress. Robert Dagostino sent me these pics, asking about color characteristics of purpleheart. The first pic shows a sheet of the purpleheart he used and the guitar blank after sanding, which as you can see removed much of the vibrancy of the color. The second pic shows the blank after he did his heat-bending, which caused the wood to regain a deep purple color but unevenly. I explained to him that all of that is completely consistent with what others have experienced with purpleheart, and some of which is discussed up above in my "cooking for color" section.


pen


bowl by Al Amstutz

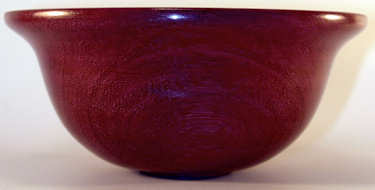

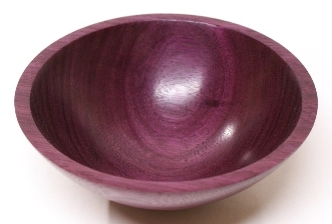

bowls with a believable range of colors


two views of a bowl


platter and vase




purpleheart star inside curly maple. I made this as a gift for a Jewish gentleman who bought several of my bowls and I like the way it turned out.


This turning sample was done to show purpleheart side grain, end grain, and so forth. It has been coated with polyurethane, and the first shot is not color corrected --- it is more red and less purple, and slightly darker than the actual wood, all of which taken together make this pic seriously mis-representative of the actual piece. The second shot was carefully color corrected and on my monitor it looks exactly like the piece of wood. Contrast this with uncorrected view you get some idea how UNrepresentative many wood pictures are on the web, not through any attempt to deceive but just as an effect of digital cameras and an unwillingness to take the time to do color correction. As I have noted elsewhere on this site, some vendors DO use color correction, but use it to grossly exaggerate the colors of the woods they sell. In particular, see tulipwood and pink ivory for examples of such exaggeration.

This view of the turning also shows how coarse-grained purpleheart usually is.

I just got this piece out again after 9 years, mostly spent in a box, and as you can see below, it has darkened considerably


the same piece as directly above but after 9 years, most of which was spent in a closed box and even other than that the piece was not exposed to any direct sunlight and to very little indirect sunlight. The original color as a fairly light lavender/purple and the color now (accurately shown here) is a deep reddish purple
